This tutorial explains Android Dialog Example and associated event handling.
A dialog is a visual component which is always attached to an Activity. Dialogs can be created from your Activity’s onCreateDialog(int)
callback method.
- When you use this callback, the Android system automatically manages the state of each dialog and hooks them to the Activity.
- When a dialog is requested for the first time,
onCreateDialog(int)
instantiate the Dialog. - After you create the Dialog, return the object at the end of the method. When you want to show a dialog, call
showDialog(int)
and pass it an integer that uniquely identifies the dialog that you want to display.
Android Dialog Example

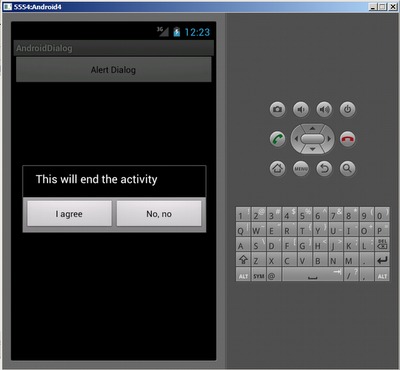

In this example, I am creating a simple LinearLayout and a Button is attached to it. Click event on the button field is handled to display the Dialog.
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android" android:layout_width="match_parent" android:layout_height="wrap_content" android:orientation="vertical" > <Button android:id="@+id/alertDialogBtn" android:layout_width="fill_parent" android:layout_height="wrap_content" android:layout_weight="6.43" android:text="Alert Dialog" /> </LinearLayout>
Using Dialog from Activity class
File: DialogActivity.java
import android.app.Activity; import android.app.AlertDialog; import android.app.Dialog; import android.app.AlertDialog.Builder; import android.content.DialogInterface; import android.os.Bundle; import android.view.View; import android.widget.Button; import android.widget.Toast; public class DialogActivity extends Activity { // Constant for identifying the dialog private static final int DIALOG_ALERT = 10; @Override public void onCreate(Bundle savedInstanceState) { super.onCreate(savedInstanceState); setContentView(R.layout.main); Button alertDialog = (Button)findViewById(R.id.alertDialogBtn); alertDialog.setOnClickListener(new View.OnClickListener() { public void onClick(View v) { showDialog(DIALOG_ALERT); } }); } @Override protected Dialog onCreateDialog(int id) { switch (id) { case DIALOG_ALERT: Builder builder = new AlertDialog.Builder(this); builder.setMessage("This will end the activity"); builder.setCancelable(true); builder.setPositiveButton("I agree", new OkOnClickListener()); builder.setNegativeButton("No, no", new CancelOnClickListener()); AlertDialog dialog = builder.create(); dialog.show(); } return super.onCreateDialog(id); } private final class CancelOnClickListener implements DialogInterface.OnClickListener { public void onClick(DialogInterface dialog, int which) { Toast.makeText(getApplicationContext(), "Activity will continue", Toast.LENGTH_LONG).show(); } } private final class OkOnClickListener implements DialogInterface.OnClickListener { public void onClick(DialogInterface dialog, int which) { Toast.makeText(getApplicationContext(), "Just kidding", Toast.LENGTH_LONG).show(); } } }
