Android WebView Example

This tutorial below explains Android WebView Example and answers to some of the commonly asked questions on android WebView. In android WebView is an embedded browser that can render static HTML data or even remote URL.

1. What is a WebView?

A WebView is an android UI component that displays webpages. It can either display a remote webpage or can also load static HTML data. This encompasses the functionality of a browser that can be integrated to application. Most of the android applications like WordPress, Flipboard, fiddly; Google Reader, etc. are integrated with WebView in order to display certain piece of online contents. It uses the WebKit rendering engine to display web pages and includes methods to navigate forward and backward through a history, zoom in and out, and perform text searches and more.

2. Can we customize Android WebView?

Android WebView use WebKit rendering engine to display web pages. If you see the android underlying platform architecture, the WebKit core resides in library layer, and the source is developed in C/C++. From android application framework layer, the WebView can connect to WebKit using JNI (Java native Interface).

Android-system-architecture

Android-system-architecture

You can have a look into the android platform source code from below links
Webkit JNI code
BrowserWebView.Java

3. Invoking the Browser application in android

At times during application development, you may fall into a requirement to invoke the device browser with a specified URL. For example, while using in app advertising, we my redirect user to the vendor website to show more info. Such case we probably go to invoke the mobile browser and load the remote URL

public class WebViewActivity extends Activity {

	@Override
	protected void onCreate(Bundle savedInstanceState) {
		super.onCreate(savedInstanceState);
		setContentView(R.layout.activity_main);

		Button openUrl = (Button) findViewById(R.id.goButton);
		openUrl.setOnClickListener(new OnClickListener() {

			@Override
			public void onClick(View view) {
				Uri uri = Uri.parse("http://javatechig.com");
				Intent intent = new Intent(Intent.ACTION_VIEW, uri);
				startActivity(intent);
			}
		});
	}

	@Override
	public boolean onCreateOptionsMenu(Menu menu) {
		getMenuInflater().inflate(R.menu.web_view, menu);
		return true;
	}

}

4. Loading static HTML data in Android WebView

Like any other UI controls in android, you can include the WebView in your xml layout. Below is my xml layout

<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:tools="http://schemas.android.com/tools"
    android:id="@+id/urlContainer"
    android:layout_width="fill_parent"
    android:layout_height="wrap_content"
    android:orientation="horizontal" >

    <EditText
        android:id="@+id/urlField"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_weight="3"
        android:hint="Enter URL to open" />

    <Button
        android:id="@+id/goButton"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_weight="1"
        android:text="Open" />

</LinearLayout>

In my activity class, we are using loadData method. It takes html string data, mime-type and encoding param as three parameters.

public class WebViewActivity extends Activity {
	private WebView webView;

	@Override
	protected void onCreate(Bundle savedInstanceState) {
		super.onCreate(savedInstanceState);
		setContentView(R.layout.activity_webview);
		webView = (WebView) findViewById(R.id.webView);
                String customHtml = "<html><body><h1>Hello, WebView</h1>" +
                               "<h1>Heading 1</h1><p>This is a sample paragraph.</p>" +
                               "</body></html>";
		webView.loadData(customHtml, "text/html", "UTF-8");
	}

	@Override
	public boolean onCreateOptionsMenu(Menu menu) {
		return true;
	}
}

Output of the above code is

 webview-loading-static-html

5. Loading remote URL in android WebView

<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    tools:context=".WebViewActivity" >

    <LinearLayout
        android:id="@+id/urlContainer"
        android:layout_width="fill_parent"
        android:layout_height="wrap_content"
        android:orientation="horizontal" >

        <EditText
            android:id="@+id/urlField"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:layout_weight="3"
            android:hint="Enter URL to open" />

        <Button
            android:id="@+id/goButton"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:layout_weight="1"
            android:text="Open" />
    </LinearLayout>

    <WebView
        android:id="@+id/webView"
        android:layout_width="fill_parent"
        android:layout_height="fill_parent"
        android:layout_below="@id/urlContainer" />

</RelativeLayout>

In my example above, I have created a sample layout with EditText, Button and a WebView. Once enters the URL in the text field and clicks the buttons, the content from the requested URL is getting loaded to the WebView.

import android.app.Activity;
import android.graphics.Bitmap;
import android.os.Bundle;
import android.view.Menu;
import android.view.View;
import android.view.View.OnClickListener;
import android.webkit.WebView;
import android.webkit.WebViewClient;
import android.widget.Button;
import android.widget.EditText;

public class WebViewActivity extends Activity {
	private WebView webView;
	private EditText urlEditText;

	@Override
	protected void onCreate(Bundle savedInstanceState) {
		super.onCreate(savedInstanceState);
		setContentView(R.layout.activity_webview);

		urlEditText = (EditText) findViewById(R.id.urlField);
		webView = (WebView) findViewById(R.id.webView);

		Button openUrl = (Button) findViewById(R.id.goButton);
		openUrl.setOnClickListener(new OnClickListener() {
			@Override
			public void onClick(View view) {
				String url = urlEditText.getText().toString();
				if(validateUrl(url)){
					webView.getSettings().setJavaScriptEnabled(true);
					webView.loadUrl(url);
				}
			}
			private boolean validateUrl(String url) {
				// write your url validation code here
				return true;
			}
		});
	}

	@Override
	public boolean onCreateOptionsMenu(Menu menu) {
		getMenuInflater().inflate(R.menu.web_view, menu);
		return true;
	}
}

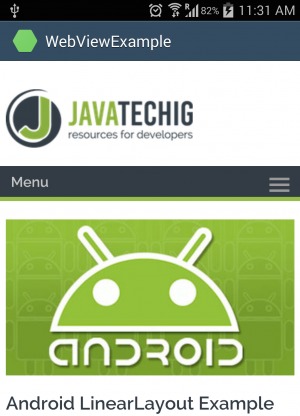

Output of the above code is here

webview-loading-url

6. Some Common Problems

6.1. Clicking URLs in WebView opens in default browser

It is an android default behavior, that it opens the links in default android browser when links are clicked from a WebView. If we want to such annoying characteristics, and always open the links in the browser field instead redirected to the default browser, then we have intercept the click events.

We can do this using android WebViewClient. WebViewClient helps to monitor events in a WebView. We have to override the shouldOverrideUrlLoading() method. This method allows performing your own action when a particular URL is selected. Once we are ready with the WebViewClient, we can set the WebViewClient of your WebView using the setWebViewClient() method.

After changes

import android.app.Activity;
import android.os.Bundle;
import android.view.Menu;
import android.view.View;
import android.view.View.OnClickListener;
import android.webkit.WebView;
import android.webkit.WebViewClient;
import android.widget.Button;
import android.widget.EditText;

public class WebViewActivity extends Activity {
	private WebView webView;
	private EditText urlEditText;

	@Override
	protected void onCreate(Bundle savedInstanceState) {
		super.onCreate(savedInstanceState);
		setContentView(R.layout.activity_webview);

		urlEditText = (EditText) findViewById(R.id.urlField);
		webView = (WebView) findViewById(R.id.webView);
		webView.setWebViewClient(new MyWebViewClient());

		Button openUrl = (Button) findViewById(R.id.goButton);
		openUrl.setOnClickListener(new OnClickListener() {
			@Override
			public void onClick(View view) {
				String url = urlEditText.getText().toString();
				if(validateUrl(url)){
					webView.getSettings().setJavaScriptEnabled(true);
					webView.loadUrl(url);
				}
			}
			private boolean validateUrl(String url) {
				return true;
			}
		});
	}

	private class MyWebViewClient extends WebViewClient {
	    @Override
	    public boolean shouldOverrideUrlLoading(WebView view, String url) {
	        view.loadUrl(url);
	        return true;
	    }
	}
	@Override
	public boolean onCreateOptionsMenu(Menu menu) {
		getMenuInflater().inflate(R.menu.web_view, menu);
		return true;
	}
}

7. How to Display HTML in Android TextView

Checkout my post from link

http://javatechig.com/android/display-html-in-android-textview/

8. References

http://developer.android.com/reference/android/webkit/WebView.html

http://developer.android.com/guide/webapps/webview.html
